Industrial Monitoring Solutions

Industrial Sensors

An industry proven range of accelerometers, velocity sensors, eddy current proximity probes, capacitive air gap sensors and LVDT’s to cover a wide range of machine vibration and position measurement applications.

PZ-Shear-Mode
Capture

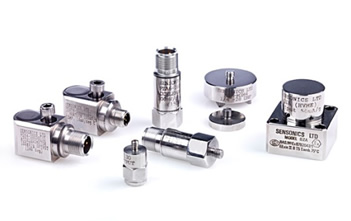

PZ Shear Mode Range of Vibration Sensors

⦿ PZS, IEPE type, 10mV/g to 500mV/g Accelerometer
⦿ PZV, IEPE type, 4mV/mm/s Velocity Sensor
⦿ PZDC, 4-20mA loop powered, Velocity Sensor
⦿ Operation to +140 °C with response from 0.1Hz – 10kHz
⦿ Dual SS316 Case EMC shielded, sealed to IP68
⦿ MIL connector or various cable options
⦿ ATEX Ex ia IIC T4
Senturion-X-Range
Capture

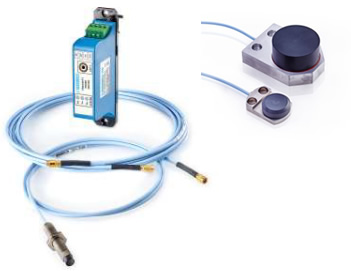

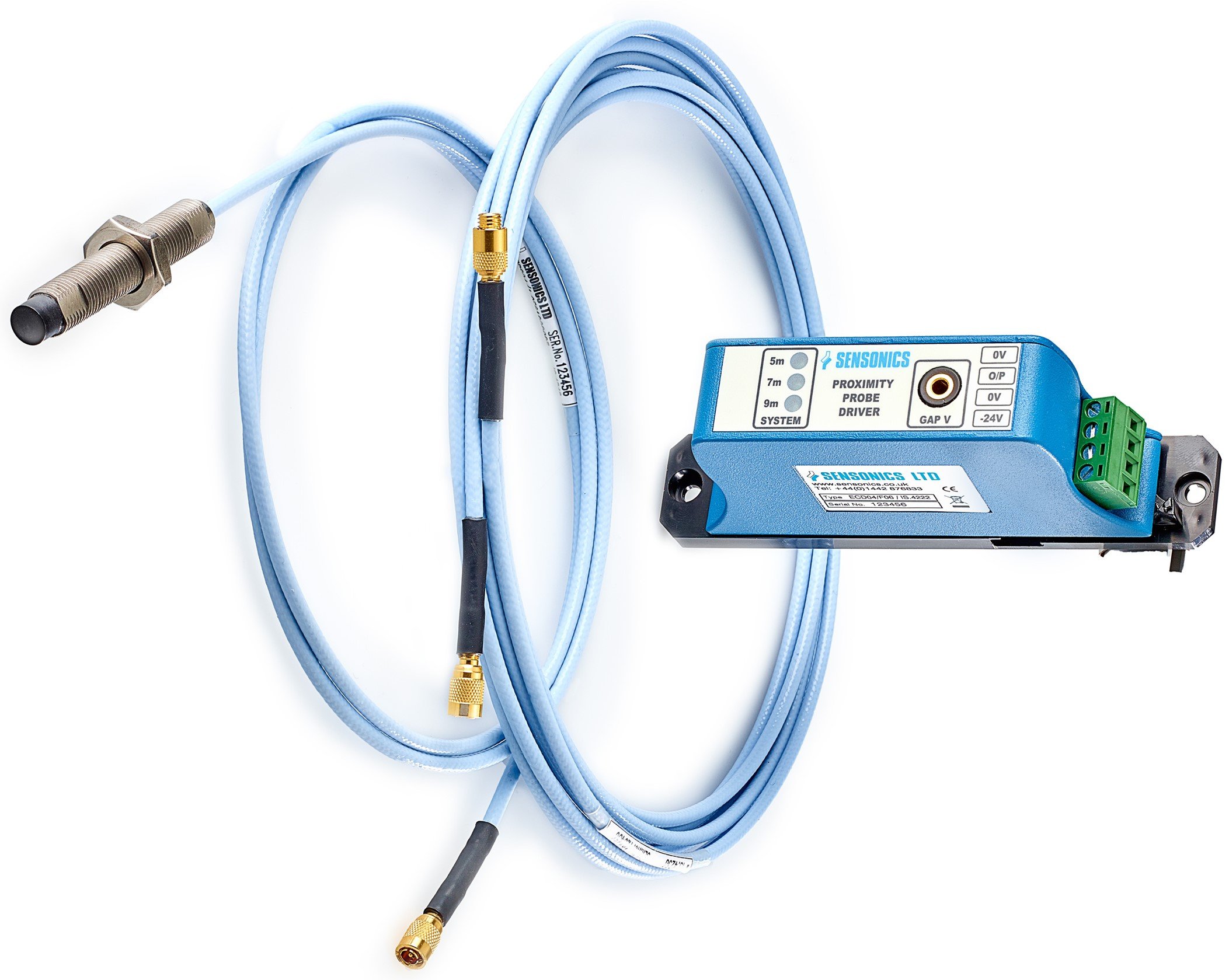

Senturion X Range of Eddy Current Proximity Probesx

⦿ 2.5mm to 25mm measurement range
⦿ Universal driver for 5m, 7m and 9m systems
⦿ API 670 standard compliant
⦿ Operation to +180 °C with response to 10kHz
⦿ Shaft vibration and position processed outputs
⦿ Snap lock and shake proof cable connection
⦿ Excellent repeatability
⦿ ATEX Ex ia IIC T2/T4
PZ-Compression-Mode
Capture-1

PZ Compression Mode
Range of Accelerometers

⦿ PZHT , +240°C operation, separate charge amplifier
⦿ PZEHT , +450°C operation, separate charge amplifier
⦿ 10mV/g, GT / Aero Derivative applications
⦿ ATEX Ex ia IIC T1
⦿ PZP, 20pC/g to 100pC/g sensitivity, +200 °C operation
⦿ 0.5Hz – 20kHz performance, nuclear applications
⦿ PZCS, 50 uA/g, 2.5Hz – 9.0kHz, +120°C operation
⦿ MOD approved for military and naval applications
VEL/G-Range
Capture-1

VEL/G Range of Electrodynamic Velocity Sensors

⦿ Self Generating, 4mV/mm/s – 20mV/mm/s
⦿ Response from 0.5Hz – 2kHz
⦿ API 670 standard compliant
⦿ Operation to +200 °C, dual SS316 case
⦿ 4-20mA processed output options
⦿ Very high noise immunity
⦿ ATEX Ex ia IIC T4
CS-Capacitive-Sensor

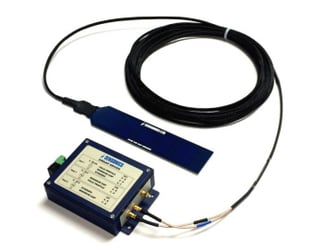

CS Capacitive Sensor for Air Gap monitoring applications x

⦿ Measurement ranges between 25mm and 75mm
⦿ Non-contact sensor with integrated dual coaxial cable
⦿ Hydro generator rotor and stator specific measurements
⦿ Operation up to +125°C
⦿ Isolated voltage and current output options
LVDT-Transducer-1

LVDT Transducer
Systems X

⦿ Measurement range between 2.5mm and 600mm
⦿ AC and DC versions with processed driver outputs
⦿ Sprung loaded, Guided or Free core option
⦿ Operation up to +220°C
⦿ Roller bearing, ball or rod end
⦿ Special options available – submersible, short body, OEM, etc.
waveform
waveform
Our Products

Download the engineers’ guide to specifying vibration monitoring systems

If you are designing a system which uses vibration monitoring then this guide can help you specify vibration monitoring systems.

This guide covers:

  • Types of vibration sensors
  • Monitoring equipment
  • Questions to ask when designing or specifying a vibration monitoring system
  • Why work with Sensonics

Please enter your details in the form to get your copy.

books

Get your copy

waveform
waveform
Have questions?

Talk to an expert

Our experienced Application Engineers are available to assist you in solving any problems that you may have concerning the choice and application of any of the Sensonics products in the measurement and control of vibration, position, temperature and proximity.
